GCT

FFC3B11 系列 FFC连接器产品

FFC 连接器采用表面贴装设计，触点间距可选 0.5mm 或 1.0mm，并可选择水平或垂直方向的 FFC/FPC 电缆入口。水平连接器分为顶部触点和底部触点两种。通常，扁平柔性电缆 (FFC) 的触点仅暴露在一侧，请根据系统设计选择合适的触点类型，使 FFC 电缆能够与连接器正确连接。电缆锁定方式有翻转式和滑动式两种，翻转式锁定方式操作更便捷。

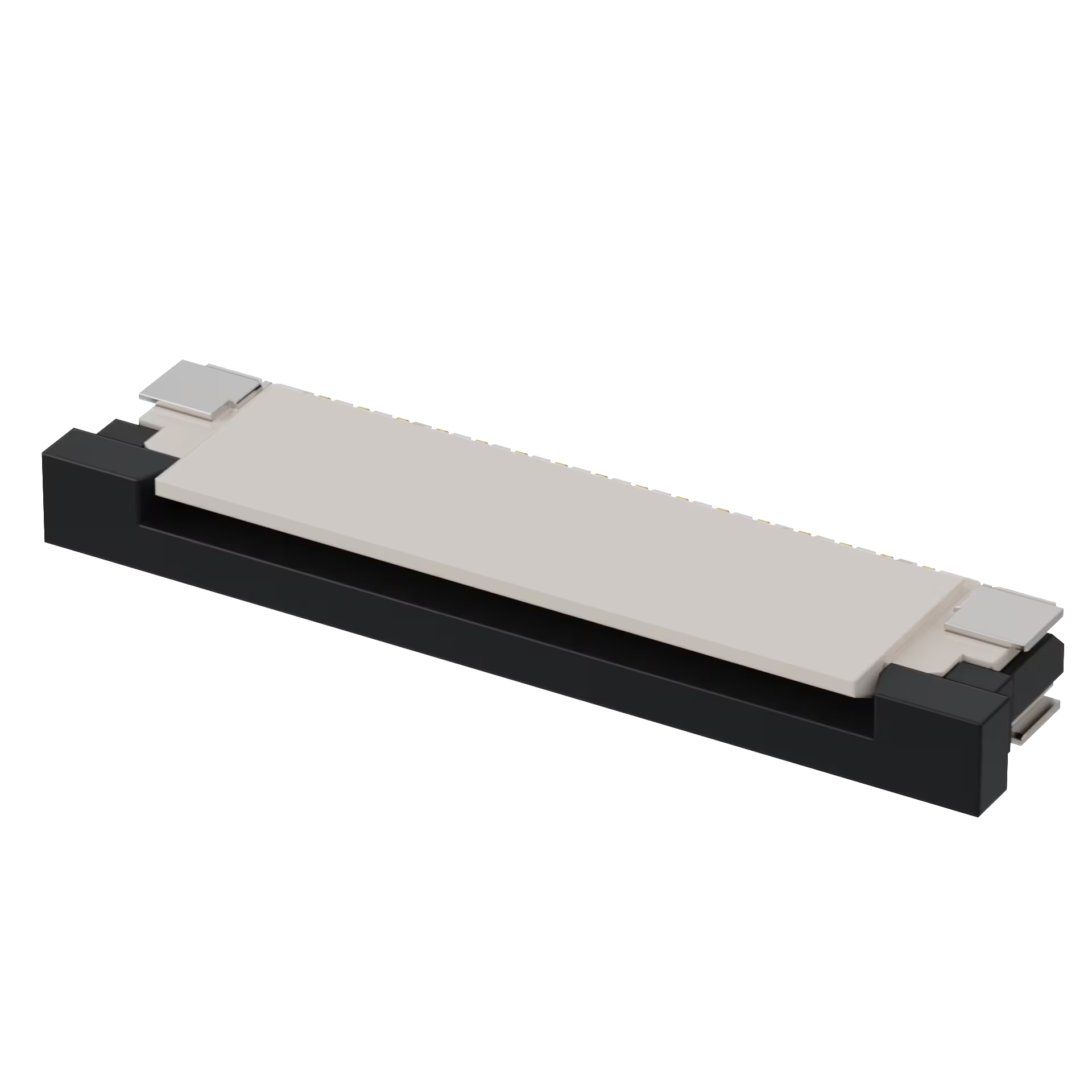

FFC3B11 系列 FFC连接器产品
FFC3B11 系列 FFC连接器产品

详细资讯

Material

Contact Material: Phosphor Bronze
Standard Insulator Material: High-Temp Plastic
Housing Material: High-Temp Plastic (UL94V-0), White
Actuator Material: High-Temp Plastic (UL94V-0), Black

Plating

Underplating: Nickel
Contact Plating: Tin or Gold Flash
Fitting Nail: Brass, tin plated

Electrical

Voltage Rating: 50V AC/DC
Current Rating: 0.4A AC/DC
Contact Resistance: 40mΩ  Max.
Insulation resistance: 50MΩ  Min. 250 V DC for 1 minute between adjacent terminal
Dielectric withstanding voltage: 250V AC for 1 minute between adjacent terminal, no breakdown

Mechanical

Durability: 20 Cycles
Mating Force: ZIF
Applicable Wire Range: 0.3mm thick

Environmental and Processing

Operating Temperature: -40°C to +125°C
Solder Temperature: Peak temp 260°C (+0/-5°C) Maximum (5 seconds)
